Construction Material / Feature:
Size: ½” (15 mm) TO 10” (250 mm)
Rating: 150#, 300#
Design Standard: BS 5351 / API 6D / ISO 17292
End Connection:
Face To Face: ASME B16.10
Testing Standard: BS 6755 / API 598 / ISO 5208
Fire Safe: BS 6755 / API 607
Application: Isolation, On – Off Service of Water, Chemical, steam, Air, Gas
Working Temperature:220 Deg Celsius Max
Working Pressure: 20 Kg/cm2 Max
Testing Pressure:
| Class | Shell (Hydrostatic) Kg/cm2 | Seat (Hydrostatic) Kg/cm2 | Seat (Pneumatic) Kg/cm2 |
|---|---|---|---|
| 150# | 30 | 22 | 7 |
| 300# | 77 | 56 | 7 |

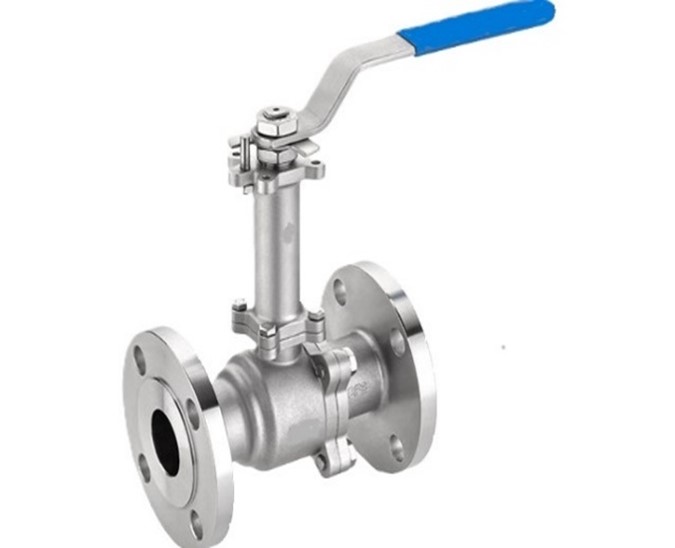

Feature: It is applicable when ball valve is underground installed, cryogenic service and high temperature service for safety purpose.
Feature: It is applicable when working media have consistent requirement of Heating or Cooling to prevent crystallization or seizing. Jacketed Ball Valve is specially design to prevent solidification of working media by jacketed fluid. This is especially use when media like bitumen and liquid Sulphur.
Construction Material / Feature:
Size: ½” (15 mm) TO 10” (250 mm)
Rating: 150#, 300#
Design Standard: BS 5351 / API 6D / ISO 17292
End Connection:
Face To Face: ASME B16.10
Testing Standard: BS 6755 / API 598 / ISO 5208
Application: They are commonly used in applications such as slurry tanks, polymerization reactors, and crystallization reactors.
Construction Material / Feature:
Size: 1½” (40 mm) TO 10” (250 mm)
Rating: PN10, PN16, 150#
Design Standard: BS 5155 / API 609/ ISO 5752
Suitable for installation between Flanged End ASA 150#, 300#, BS Table E & Table F.
Face To Face: ASME B16.10
Testing Standard: BS 6755 / API 598 / ISO 5208
Application: Butterfly valves are used in diverse industries and applications such as pharmaceutical, chemical and oil, food, water supply, wastewater treatment, fire protection, gas supply, fuel handling, and sanitary fittings. Butterfly valves for water are used as control valves in pipelines to shut off water flow.
Working Temperature: 120 Deg Celsius Max
Working Pressure: 20 Kg/cm2 Max
Construction Material / Feature:
Size: 1” (25 mm) TO 6” (150 mm)
Rating: 150#, 300#
Design Standard: BS 1873 / API 600 / API 603 / ASME B16.34
End Connection:
Face To Face: ASME B16.10
Testing Standard: BS 6755 / API 598
Application:Globe Valves are used in HVAC systems to regulate, throttle, or isolate flow. They are especially useful when precise flow control is needed, such as in hot water heating systems, steam systems, or in chillers where modulating flow is important for system performance
Working Temperature: 425 Celsius Max
Construction Material / Feature:
Size: 1” (25 mm) TO 4” (150 mm)
Rating: 150#
Design Standard: API 602 / ASME B16.34
End Connection:
Face To Face: ASME B16.10
Testing Standard: API 598 / ASME B16.34
Application:Piston valves are used primarily for saturated and superheated steam, thermic fluids, acids, gases, vacuum, and other critical media and hot water service in power plants, refineries, pulp, and paper mills, etc. Specific applications include steam headers and manifolds, condensate manifolds, desuperheaters, steam trap isolation, etc.
Construction Material / Feature:
Size: 1” (25 mm) TO 6” (150 mm)
Rating: 150#, 300#
Design Standard: BS 1873 / API 600 / API 603 / ASME B16.34
End Connection:
Face To Face: ASME B16.10
Testing Standard: BS 6755 / API 598
Application:Gate valves are used to isolate specific areas of the water supply network during maintenance, repair works, new installations, as well as to reroute water flow throughout the pipeline
Swing Type Check Valve
Wafer Type Check Valve
Dual Plate Check Valve
Construction Material / Feature:
Size: 1” (25 mm) TO 6” (150 mm)
Rating: 150#, 300#
Design Standard: BS 1873 / API 594 / API 600 / API 603 / ASME B16.34
End Connection:
Face To Face: ASME B16.10
Testing Standard: BS 6755 / API 598
Application: one-way valve is a valve that normally allows fluid to flow only one direction. It is used to prevent backflow to protect the piping, other valves, pumps etc.
Construction Material / Feature:
Size: ½” (15 mm) TO 6” (150 mm)
Rating: 150#, 300#
Design Standard: BS 1868 / API 6D / ASME B16.34
End Connection:
Face To Face: ASME B16.10
Testing Standard: BS 6755 / API 598
Application: It used to filter fluid to separate solid matter from it to protect pumps, meters, control valves, steam traps, regulators, and other process equipment.
CS Fabricated Basket Type Strainer.
Construction Material / Feature:
Materials WCB / CF8 / CF8M
Size: 1” (25 mm) TO 6” (150 mm)
End Connection: : Flanged ASA 150# RF as per ASME B16.5
Face To Face: : ASME B16.10
Application : Verifying the production stages of a process visually. Inspection of fluids for changes in colour or consistency.
The Automatic Control Valve, the word is self explanatory. It is a highly engineered Automatic Control Valve knowledgeably designed to operate of the line pressure or if desired, from an independent power source. Actrol valves are hydraulically operated, diaphragm actuated for multi-function control of non corrosive, non abrasive fluids.
Size: 25 mm to 400 mm
Rating : 150# & 300#
Material : CS / MS / WCB / SS
